Steam Boiler Inspection: What to Look For

Why Regular Inspection Matters

A steam boiler is a pressure vessel, and like any pressure vessel it is only as safe as the last person who looked inside it properly. In model engineering and heritage steam, the boilers are small but the stored energy is real. A 5-inch gauge locomotive boiler at 80 psi holds enough energy to cause serious injury if a fitting lets go or a crown sheet drops. That is why inspection is not a box-ticking exercise but the heart of safe steaming.

The good news is that most problems announce themselves early, if you know where to look. Corrosion, scale, and cracking all leave signatures. Your job is to find them before they find you.

Start With the Paperwork and History

Before you touch a spanner, gather the boiler's story. Every boiler should have a record of its build, its materials, and every hydraulic and steam test it has passed. In the UK, model and miniature boilers are usually covered by a recognised inspection scheme, and heritage boilers fall under written schemes of examination.

Boiler certificate — current and in date?
Test history — when was the last hydraulic test, and at what pressure?
Repairs — any welded or brazed repairs, and who did them?
Water treatment — what has been used, and how consistently?

A boiler with a thin file and a thick coat of paint deserves more scrutiny, not less.

External Inspection: What You Can See

Begin outside. Remove lagging, cladding, and anything that hides the shell. Look at the firebox, smokebox, and barrel for weeping, staining, and rust bloom. A trail of white or green deposit often points to a leaking stay or fitting long before the leak becomes obvious under steam.

Check the foundation ring, the throatplate, and the areas around the mudhole doors. These are classic corrosion sites because water sits there and ash collects. Pay attention to the underside of the barrel where condensation pools. If the boiler is copper, look for the distinctive pink tinge of dezincification on fittings and the green of copper salts around joints.

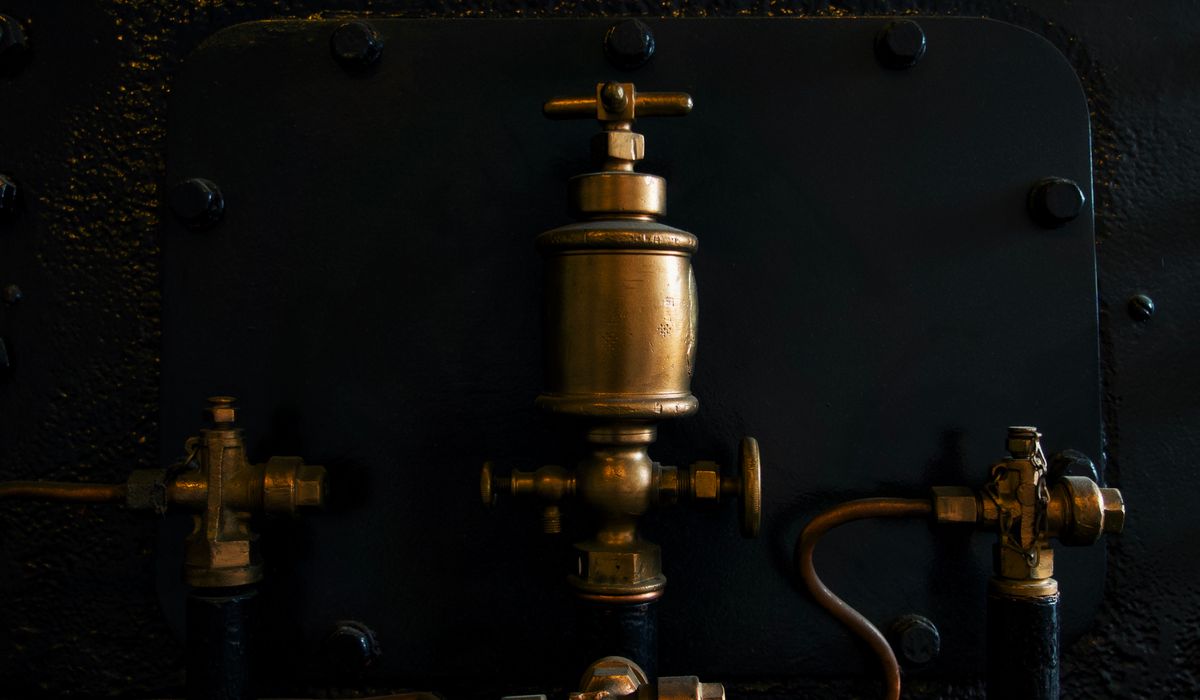

Work around every bush and fitting. Wipe them clean and look closely at the threads and the seat. A weeping bush is easy to fix now and expensive to fix after it has eaten a ring of metal out of the shell.

Internal Inspection: Corrosion, Scale, and Sludge

Internal inspection is where the truth lives. Open every washout plug, mudhole, and inspection cover you can. Get a light and a mirror inside, and get your hands in where you can reach. The critical areas are:

Waterline — the line where water meets air is the most aggressive corrosion zone in any boiler.
Crown sheet and tube plate — the hottest, most stressed areas, and where scale builds fastest.
Around stays — corrosion often starts at the stay head and creeps along the plate.
Bottom of the barrel and firebox — where sludge settles and eats metal quietly.
Tube ends — rolled or expanded joints loosen as scale builds.

Scale is more than a nuisance. It insulates the plate from the water, so the metal runs hotter than it should. A crown sheet with heavy scale can overheat and soften, and that is how a boiler fails. Sludge under scale is worse, because it holds water against the plate in an oxygen-poor environment that promotes pitting.

Pitting looks like small dark craters. Measure the deepest ones with a depth gauge or a pit gauge. If the remaining wall thickness in a critical area is below the design minimum, the boiler is out of service until it is repaired.

Cracks and Stay Failure

Cracks in boilers love to hide in corners. They start at the toes of welds, at the edges of stay holes, and in the ligament between stays. Look for fine dark lines that do not wipe away, and for rust staining that follows a straight or curved path. Dye penetrant or magnetic particle inspection will find cracks that the eye misses, and any crack in a pressure-containing plate is serious.

Stays are the boiler's skeleton. A broken stay puts extra load on its neighbours, and they can fail in a chain. Test stays by tapping: a sound stay rings, a cracked one thuds. Look at the stay heads inside the firebox for corrosion wastage. If a stay head is reduced, it is not doing its job. Check the stay nuts outside for looseness, and look for a ring of rust around a stay that has been weeping.

Hydraulic Testing and Professional Examination

An internal and external inspection is not enough on its own. A hydraulic test proves the boiler can hold pressure, and it does so with water, which stores far less energy than steam. The boiler is filled completely, air is vented, and pressure is raised slowly to the test figure — commonly 1.5 times the working pressure for model boilers, or as specified by the relevant scheme. Watch every joint, stay, and fitting during the test. A drip that stops as pressure rises is usually a weeping thread; a drip that grows is a problem.

Hydraulic testing does not replace a proper examination, and it can mask a crack that only opens under steam. That is why the responsible approach is a combination: a thorough visual inspection, non-destructive testing where needed, a hydraulic test, and a steam test under the supervision of a competent examiner. Keep the certificates with the boiler, and have the work done on schedule, not when something goes wrong.

Small boilers reward careful owners. Clean water, sensible treatment, regular washouts, and a proper inspection regime will keep a boiler steaming safely for decades. Look after it, and it will look after you.
